Crowdlinks Backend

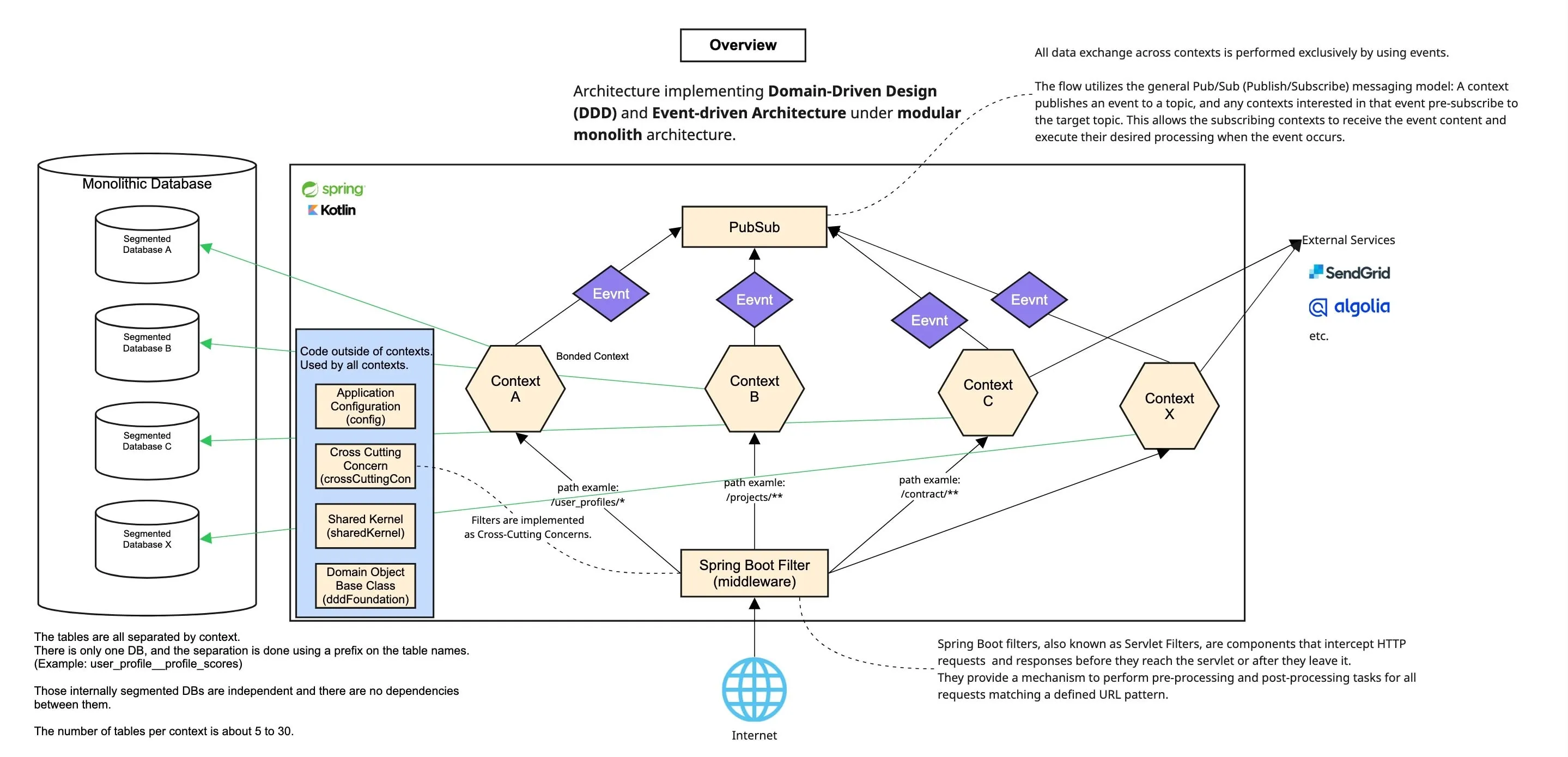

Overview

The CrowdLinks backend is a Modular Monolith application built with Kotlin and Spring Boot, designed to handle complex business logic through Domain-Driven Design (DDD) principles.

Starting from a prototype phase, we needed a robust architecture that could support rapid iteration while maintaining a clean separation of concerns. We chose a Modular Monolith approach over Microservices to balance developer productivity with architectural boundaries, allowing a small team to move fast without the operational overhead of distributed systems.

The system implements Hexagonal Architecture (Ports and Adapters) to isolate the core domain from external infrastructure, and utilizes CQRS and Event-Driven patterns to handle complex data flows and ensure scalability.

Tech Stack

Core Design Patterns / Principles

Core Package Structure

The backend package is divided into four main parts:

• Bounded Context: As the name suggests, this is where the Bounded Contexts are located.
• DDD Foundation: Defines base classes for domain objects and use cases. Domain objects and use cases inherit or derive from this foundation.
• Shared Kernel: Defines domain objects shared across contexts. For example, UniversalUid, which uniquely identifies users across the entire application, is defined here.
• Cross-Cutting Concern: Handles concerns like authentication/authorization, logging, and error handling. These are isolated at the package level to prevent them from mixing with domain logic.

Event-Driven and PubSub

Communication between loosely coupled contexts is realized via Domain Events.

When a domain event with a specific topic is published within one context, subscribers in other contexts that have registered interest in that topic are triggered to execute arbitrary processing. For implementation convenience, CrowdLinks uses Spring Boot’s DI container for this PubSub mechanism.

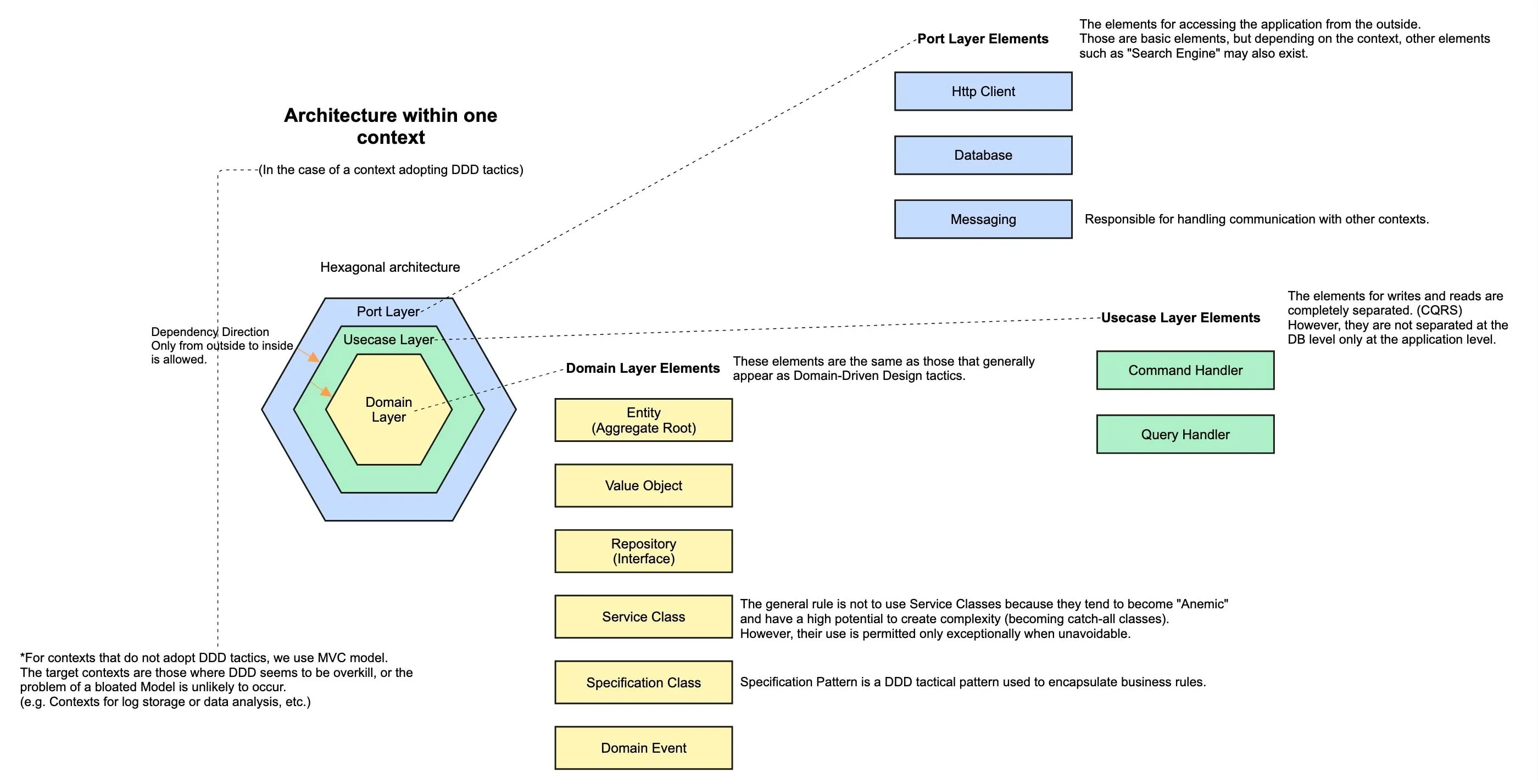

Hexagonal Architecture

We adopt Hexagonal Architecture, dividing each context into three layers from the core outward:

1. Domain Layer: Implements domain objects.
2. Use Case Layer: Implements query handlers and command handlers.
3. Port Layer: Implements elements for accessing external systems (Web, Database, other contexts).

Dependencies flow only from outer layers to inner layers; the reverse is strictly forbidden.

CQRS

We adopt the CQRS pattern, separating read and write operations:

• Command Handlers: Handle write operations. They use Domain Objects incorporating business logic to ensure data consistency.
• Query Handlers: Handle read operations. They use View Models specialized for frontend display, which are independent of domain objects.

In the database, read tables and write tables are separated, with data synchronization realized by the event-driven pattern.

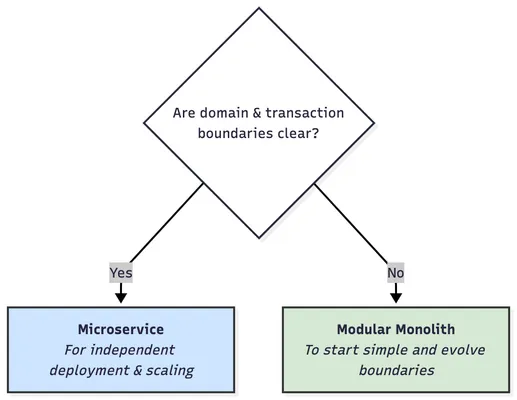

Why Chose Modular Monolith Over Microservice?

After our own research and consulting with other companies known for their DDD implementation, we received the opinion that “whether domain and transaction boundaries are clear or not” is a major deciding factor for choosing between microservices or monolithic architecture.

Following this decision criterion, at that time, CrowdLinks was still a relatively new service with daily changes in domain knowledge, requiring trial and error from a DDD perspective. The domain and transaction boundaries were unstable and not clearly defined.

Building on this foundation, first, in terms of product scale, it was a codebase where we believed developer experience (DX) would not decrease even with a monolithic approach. Additionally, when considering a scale that could be developed by a 3-5 person engineering team, we thought that dividing the application into microservices would likely overwhelm our capacity.

Therefore, although we initially lacked this decision framework, we were ultimately able to make the decision with considerable confidence to start with a monolithic approach.

Domain-Driven Design (DDD)

Domain-Driven Design (DDD) is an approach that focuses on the business domain, translating complex business specifications into system design. By placing business rules at the center of the system, we prevent the dispersion of business logic and achieve highly maintainable development.

What DDD Solves

• Dispersion of Business Rules: Prevents business logic from leaking into various parts of the code, reducing the cost of future modifications.
• Unmaintainable Code: By centralizing business rules, we avoid “spaghetti code” and suppress the increasing difficulty of maintenance as the system grows.
• Domain Knowledge Bias: Using a common language (Ubiquitous Language) between business members and engineers prevents knowledge silos and reduces communication costs.

Key Elements

Deep Dive: Aggregates & Consistency

To illustrate how we apply DDD principles in practice, let’s look at how we handle data consistency and transactions using Aggregates.

1. Consistency via Aggregate Roots

In CrowdLinks, we strictly enforce the rule that changes to entities within an aggregate must only occur through the Aggregate Root. This ensures that business invariants are always maintained.

Example: Project Aggregate

The Project entity acts as the Aggregate Root. It manages its internal state (like status and content) and ensures that valid transitions occur.

fun changeStatusTo(status: ProjectStatusType, projectContent: ProjectContent): Project {
    // 1. Validation: Check if the status transition is valid based on current state and content
    require(this.isChangeableStatus(status, projectContent))

    // 2. State Change: Return a new instance with the updated status (Immutability)
    // We never mutate the existing instance; instead, we return a fresh copy to ensure thread safety and predictability.
    return copy(
        status = status,
        publishedDatetime = if (this.publishedDatetime == null && status === ProjectStatusType.PUBLISHED) {
            DateTimeProvider.now()
        } else {
            null
        },

        // 3. Event Driven: Register a domain event to notify other parts of the system (e.g., Search Indexer)
        events = this.events.occur(
            ProjectStatusChangedEvent(
                projectId = this.id,
                universalCorporationId = this.universalCorporationId,
                statusBeforeChange = this.status,
                statusAfterChange = status
            )
        )
    )
}boundedContext/project/domain/.../Project.kt/boundedContext/project/domain/project/Project.kt

And here is how a Use Case utilizes this Aggregate to perform a transaction:

@Service
class ChangeProjectStatusUseCase(
    @Autowired private val projectRepository: ProjectRepository,
    @Autowired private val projectContentFactory: ProjectContentFactory,
    @Autowired private val domainEventPublisher: DomainEventPublisher
) : CommandUseCase<ChangeProjectStatusCommand, Unit> {
    @Transactional
    override fun handle(command: ChangeProjectStatusCommand) {
        // 1. Reconstitute: Load the aggregate from the repository
        val project = projectRepository.findUnarchivedOneById(command.projectId).getOrFail()
        val projectContent = projectContentFactory.create(project)

        // 2. Business Logic: Delegate state change to the Aggregate Root
        // The Use Case doesn't know *how* to change status, only *that* it should.
        // The Aggregate is immutable, so we receive a new instance with the updated state.
        val changedProject = project.changeStatusTo(command.status, projectContent)

        // 3. Persist: Save the updated aggregate
        projectRepository.store(changedProject)

        // 4. Publish Events: Propagate side effects
        domainEventPublisher.publishAll(changedProject.getAllOccurredEvents())
    }
}/.../ChangeProjectStatusUseCase.kt/boundedContext/project/useCase/command/project/ChangeProjectStatusUseCase.kt

By forcing all status changes through changeStatusTo, we guarantee that a Project can never be in an invalid state (e.g., “Published” without required content).

2. Domain Services (Multi-Aggregate Transactions)

When business logic spans multiple aggregates but doesn’t necessarily involve a state change transaction, we use Domain Services.

The ScoutAcceptanceService coordinates the acceptance of a scout, which involves updating the Scout aggregate and adding the user to the Project aggregate. This encapsulates the complexity of interacting with multiple aggregates to perform a specific domain calculation, keeping the Use Cases clean.

@Service
class ScoutAcceptanceService(
    private val scoutRepository: ScoutRepository,
    private val projectRepository: ProjectRepository
) {
    @Transactional
    fun acceptScout(scoutId: ScoutId) {
        // 1. Load Scout Aggregate
        val scout = scoutRepository.findById(scoutId)
            ?: throw NotFoundException("Scout not found")

        // 2. Update Scout status
        scout.accept()
        scoutRepository.save(scout)

        // 3. Load Project Aggregate
        val project = projectRepository.findById(scout.projectId)
            ?: throw NotFoundException("Project not found")

        // 4. Update Project (Cross-Aggregate Business Rule)
        // When a scout is accepted, the user automatically becomes a candidate.
        project.addCandidate(scout.userId)
        projectRepository.save(project)
    }
}boundedContext/.../ScoutAcceptanceService.kt/boundedContext/scout/domain/service/ScoutAcceptanceService.kt

But, why not use Domain Events?

While we could use an event-driven approach (e.g., ScoutAcceptedEvent -> ProjectCandidateListener), we chose a synchronous transaction to explicitly express the domain knowledge: “A user must be a candidate if they accept a scout.” By encapsulating this rule within a Domain Service, the code itself becomes a direct representation of this business requirement, rather than scattering the logic across decoupled event listeners.

Cross-Cutting Concerns

Technical concerns that span multiple modules are isolated in a dedicated crossCuttingConcern package. This prevents “technical noise” from polluting the pure domain logic.

Package Structure:

jp.crowdlinks.crossCuttingConcern
├── errorHandling
├── logging
├── security
├── pubsub
└── ...

Logging (AOP)

We use Aspect-Oriented Programming (AOP) to handle concerns like audit logging transparently. For instance, TrackEntityChangeAop automatically records changes to entities without requiring manual logging calls in every Use Case.

@Aspect
@Component
class TrackEntityChangeAop(@Autowired private val entityChangeRepository: EntityChangeRepository) {
    /**
     * Intercepts methods annotated with @TrackEntityChange to record the change.
     */
    @Before(value = "@annotation(${TrackEntityChange.PACKAGE_NAME}) && args(entity)")
    fun record(joinPoint: JoinPoint, entity: Entity<*>) {
        val methodName = joinPoint.signature.name
        val entityChange = EntityChange.create(
            requestId = MDCValueManager.getRequestId(),
            methodName = methodName,
            target = entity
        )
        entityChangeRepository.store(entityChange)
    }
}/.../TrackEntityChangeAop.kt/crossCuttingConcern/logging/trackEntityChangeAop/TrackEntityChangeAop.kt

Error Handling

We use @RestControllerAdvice to centralize exception handling. This ensures a consistent error response format across the entire API, mapping domain exceptions (like AggregateRootNotFound) to appropriate HTTP status codes (like 404 Not Found).

Critical errors are reported to Rollbar via an ExceptionNotifier interface, which abstracts the external service.

@Component
class RollbarExceptionNotifier(
    @Autowired private val properties: ApplicationProperties,
    @Autowired private val request: HttpServletRequest
) : ExceptionNotifier {

    override fun error(exception: Exception) {
        client().error(exception)
    }

    private fun client(): Rollbar {
        val config = ConfigBuilder.withAccessToken(properties.rollbar.accessToken)
            .environment(properties.rollbar.environment)
            .request(RequestProvider(request)) // Attach request context (URL, IP, etc.)
            .build()
        return Rollbar(config)
    }
}/.../RollbarExceptionNotifier.kt/crossCuttingConcern/errorHandling/infrastructure/RollbarExceptionNotifier.kt

And the global handler uses this notifier:

@RestControllerAdvice
class RestControllerExceptionHandler(@Autowired private val exceptionNotifier: ExceptionNotifier) {

    @ExceptionHandler(CustomException.AggregateRootNotFound::class)
    fun handleNotFound(
        exception: CustomException.AggregateRootNotFound
    ): ResponseEntity<NotFoundResponse> {
        return ResponseEntity
            .status(HttpStatus.NOT_FOUND)
            .body(NotFoundResponse(message = exception.message))
    }

    @ExceptionHandler(Exception::class)
    fun handleInternalServerError(exception: Exception): ResponseEntity<InternalServerErrorResponse> {
        // Notify Rollbar
        exceptionNotifier.error(exception)

        return ResponseEntity
            .status(HttpStatus.INTERNAL_SERVER_ERROR)
            .body(InternalServerErrorResponse())
    }

    // ... other exception handlers
}/.../RestControllerExceptionHandler.kt/crossCuttingConcern/errorHandling/RestControllerExceptionHandler.kt

Security

Security configurations, such as authentication filters and CORS settings, are managed centrally using Spring Security. We implement custom filters (e.g., JsonWebTokenParseFilter) to handle JWT authentication before requests reach the domain logic.

@Configuration
@EnableWebSecurity
class InternalFrontendWebSecurityConfig : WebSecurityConfigurerAdapter() {
    override fun configure(http: HttpSecurity) {
        http
            .authorizeRequests()
            .antMatchers("/health_check").permitAll()
            .anyRequest().authenticated()
            .and()
            .sessionManagement().sessionCreationPolicy(SessionCreationPolicy.STATELESS)
            .and()
            .addFilterBefore(jsonWebTokenParseFilter, UsernamePasswordAuthenticationFilter::class.java)
    }
}/.../InternalFrontendWebSecurityConfig.kt/crossCuttingConcern/security/InternalFrontendWebSecurityConfig.kt

Challenges & Learnings

The Good

• Clarity & Ubiquitous Language: The explicit architecture and domain objects bridged the gap between business and engineering. We could use the same language in code and business discussions, significantly reducing communication costs.
• Testability: The core domain could be tested in isolation with pure unit tests. Aggregates ensured data consistency, meaning we only needed to test the aggregate’s logic to guarantee valid state transitions.
• Refactoring Safety: The modular structure allowed us to rewrite entire modules (e.g., the “Message” context) without worrying about breaking unrelated parts of the system.

The Struggle

• High Initial Cost: Implementing Hexagonal Architecture, CQRS, and Event Sourcing required a significant upfront investment in learning and boilerplate code. For a team used to MVC, this could feel “roundabout” at first.
• Context Complexity: While modules were decoupled, tracing a process that spanned multiple contexts (via event sourcing) could be difficult, making debugging harder than in a simple monolith.
• MVC vs DDD Overhead: For simple tasks like adding attributes to a model, we found that the DDD approach required significantly more changes than a traditional MVC approach, leading us to question the cost-benefit for smaller features.
